Skyworks
SKY63104/05/06 - Jitter Attenuating Clocks
SKY63104,SKY63105,SKY63106
12-Output, Any-Frequency, Any-Output Jitter Attenuators/Clock Multipliers with Ultra-Low Jitter
Description
SKY63104/05/06 Jitter Attenuators combine 5th-generation DSPLL® and MultiSynth™ technologies with an ultra-low jitter VCO to deliver ultra-low jitter (<55 fs) for high-performance applications like 112G and 224G SerDes and Coherent Optics. They are designed for applications demanding the highest levels of integration and jitter performance. All PLL components are integrated on-chip, eliminating the risk of noise coupling associated with discrete solutions. The SKY63104 has a single DSPLL with two MultiSynths; the SKY63105 has two DSPLLs with one MultiSynth, and the SKY63106 has three DSPLLs. All devices support free-run, synchronous, and holdover modes as well as enhanced hitless switching minimizing the phase transients associated when switching between input clocks. These devices are available with either non-volatile memory (NVM), to enable powering up with a known frequency configuration, or with an external flash option. Programming the SKY63104/05/06 is easy with Skyworks’ ClockBuilder® Pro (CBPro) software. The devices can be factory-programmed, allowing them to power up to known frequencies and settings, or shipped as “blank” devices to provide more flexibility.
Application
- 56G/112G/224G PAM4 SerDes clocking
- OTN muxponders and transponders
- 100/200/400/600/800G networking line cards
- Synchronous Ethernet
- Data center switches
- 100G/200G/400G optical transceivers
- Medical imaging
- Test and measurement
Key Features
- Utilizes Fifth-generation DSPLL and MultiSynth technologies
- ANY input to ANY combination of output frequencies up to 3.2 GHz
- Ultra-low phase jitter (<55 fs typ)
- Enhanced hitless switching minimizes output phase transients (35 ps typ)
- Up to six differential/single-ended Inputs
- Input frequency range
Differential: 8 kHz to 1000 MHz
LVCMOS: 8 kHz to 250 MHz - 12 Outputs
- Output frequency range
Differential: 8 kHz to 3.2 GHz
LVCMOS: 8 kHz to 250 MHz - Fixed or user-adjustable output formats
- External flash or internal NVM-grade option
- PCIe Gen 1/2/3/4/5/6 compliant
- Simplified API interface
- Full suite of status monitors

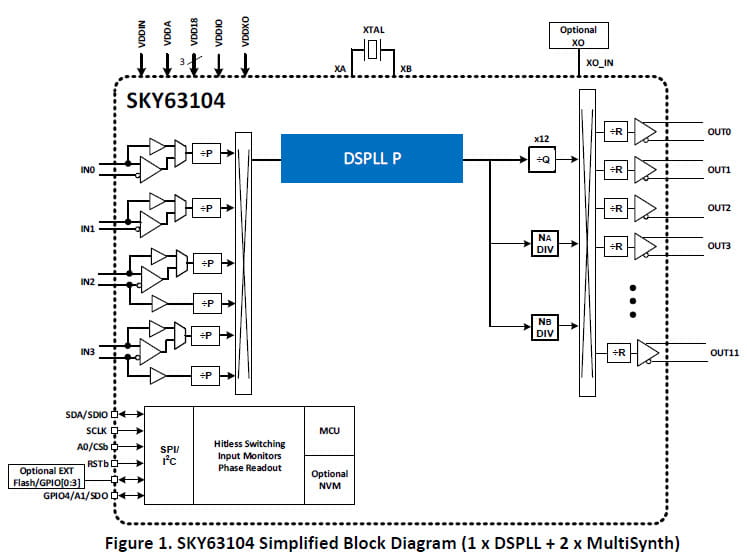

- SKY63104: 1 DSPLL, 2 MultiSynth
- SKY63105: 2 DSPLL, 1 MultiSynth
- SKY63106: 3 DSPLL, 0 MultiSynth
- 56-QFN, 8 x 8 mm
- ClockBuilder Pro Configuration Software
