ITE Tech. Inc.

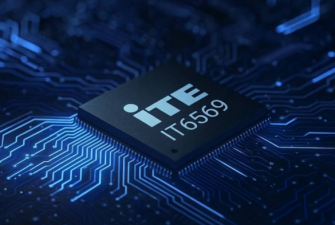

IT6569 - DisplayPort to HDMI Converter
IT6569
Built for 8K and High-Refresh-Rate Displays
Product Introduction
The IT6569FN is a high-performance single-chip DisplayPort to HDMI converter. Combined with DisplayPort receiver and HDMI transmitter, the IT6569FN supports DisplayPort input and HDMI output by conversion function.The built-in DisplayPort receiver is fully compatible with DisplayPort 1.4a and HDCP 1.3/2.3 specifications. With 4-Lane HBR3 (High-Bit-Rate 3) configuration and DSC 1.2a, the DP receiver can support VESA resolution up to WUXGA ( 1920x1200 @ 240Hz ) or WQXGA (2560x1600 RB @ 240Hz ), and support CEA resolution up to 4Kx2K 444 @ 120Hz or 8Kx4K 444 @ 30Hz or 8Kx4K 420 @ 60Hz. This DisplayPort receiver also supports MCCS and CEC tunneling over AUX channel.
The built-in HDMI transmitter is a high-performance HDMI 2.1 transmitter, fully compliant with HDMI 2.1a, HDCP 1.4/2.3 and backward compatible with DVI 1.0 specifications. This HDMI transmitter can support color depth up to 36 bits ( 12 bits/color ) and ensures robust transmission of high-quality uncompressed video content. Aside from the various video output formats supported, this HDMI transmitter also support 8-channels digital audio, with sampling rate up to 192 kHz and sample size up to 24 bits, and HBR audio.
With embedded MCU and Flash, IT6569FN is easy to program. Customers need no external Flash and MCU, which can reduce the BOM cost and board size.
Each IT6569FN comes preprogrammed with a unique HDCP key, in compliance with 1.3/2.3 –Amendment for DisplayPort, rev1.0 and HDCP 1.4/2.3 –HDMI compliance standard to ensure secure transmission of high-definition content. Users of the IT6569FN do not need to purchase any HDCP keys or ROMs
Built for Various Applications
- WOA PC
- OPS Daughter Card
- Docking
- Sink Display Product
Key Feature
- DP1.4 to HDMI2.1 converter
- Compliant with DisplayPort Specification V1.4a at 1.62/2.7/5.4/8.1 Gbps data rate ( RBR/HBR/HBR2/HBR3 )
- Compliant with HDMI2.1a, HDCP 1.4/2.3 and DVI 1.0 specification
- Support TMDS mode link speed up to 6 Gbps, resolution up to 4K@60Hz
- Support FRL mode link speed of up to 12 Gbps, resolution up to 4K120 444 or 8K30 444 or 8K60 420
- Support DSC decoder compliant with DSC V1.2a
- Support up to 4Kx2K@240Hz 444 or 8Kx4K@60Hz 444 ( with DSC stream )
- Support 8-channel, uncompressed LPCM I2S audio with sample rates of 32~192kHz and sample sizes of 16~24 bits, and 768 kHZ HBR NLPCM audio by DP to HDMI pass-through
- Support digital audio insertion and extraction through a single I2S/SPDIF interface, supporting 2-channel audio and HBR audio up to 768kHz.
- Support Display Adaptive Sync to HDMI2.1 Variable Refresh Rate (VRR) converter
- Support embedded MCU and twelve GPIOs
- Embedded InfoBlock in communication with SOC
