SiMG301 - Series 3 Low Power Multiprotocol Wireless SoC
SiMG301
Purpose-built for line-powered smart devices, with multiprotocol support
Product Description
The SiMG301 SoC family belongs to our next generation Series 3 platform that further extends our leadership in ultra-low power IoT SoCs and modules. Series 3 brings new levels of compute, security, RF performance, and power efficiency that are necessary to address emerging IoT markets. The SiMG301 is purpose built for line powered smart devices including LED lighting, plugs and switches.The multi-core device has an ARM® Cortex®-M33 running up to 150 MHz for application development and dedicated cores for the radio and security engine. Our Secure Vault™ High, designed for PSA level 3 certification, helps to protect both the data and the device. Memory options of up to 4 MB Flash and 512 kB RAM allow for more demanding applications including support for our concurrent multiprotocol (CMP) that can run both Zigbee and Matter over Thread at the same time on a single device, simplifying SKU management for the product manufacturer and ease of use for the end user.
Optimized for LED lighting applications, select SiMG301 devices integrate key features including a PIXELRZ single wire communication interface for LED controller ICs as well as a LED pre-driver that enables low level and consistent dimming, resulting in a simplified design, reduced BOM, and lower product cost.

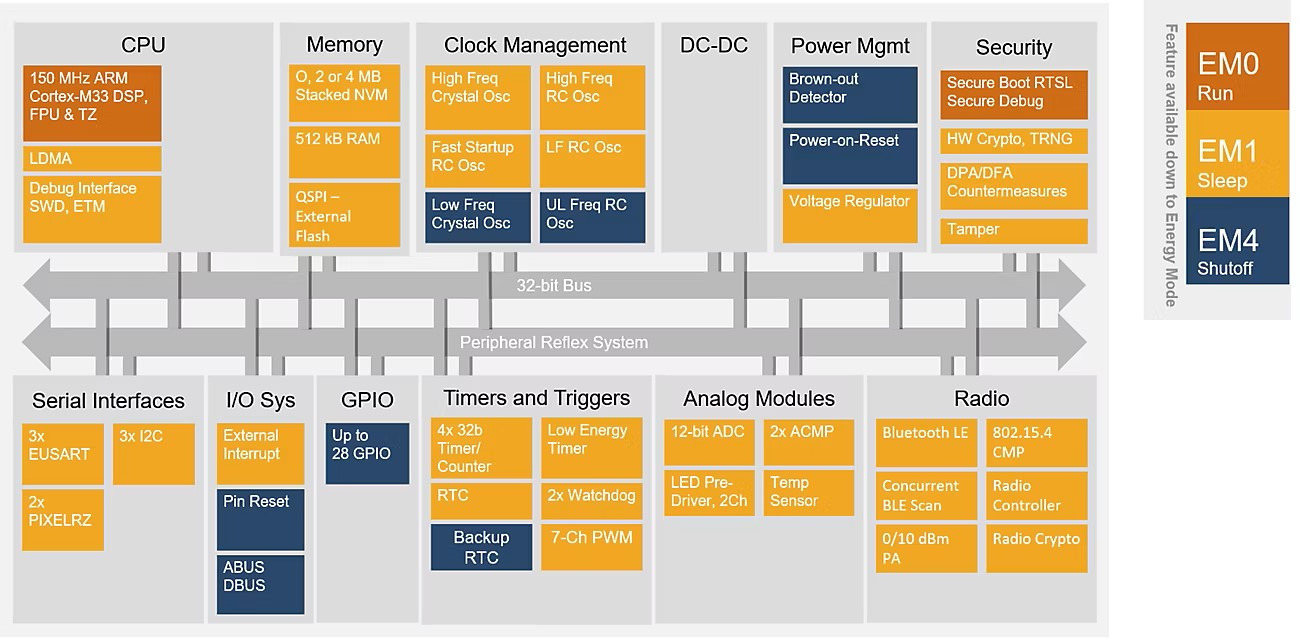

SiMG301 Common Specs
Compute
- High-performance 32-bit 150 MHz ARM Cortex®-M33 with DSP instruction and floating-point unit for efficient signal processing
- Up to 4 MB co-packaged flash program memory or external QSPI memory interface with run-time authentication and encryption
- Up to 512 kB RAM data memory
- 2.4 GHz radio operation
- -106.3 dBm sensitivity @ 250 kbps O-QPSK DSSS
- -106.8 dBm sensitivity @ 125 kbps GFSK
- -98.6 dBm sensitivity @ 1 Mbps GFSK
- -95.7 dBm sensitivity @ 2 Mbps GFSK
- TX power up to 10 dBm
- 8.1 mA RX current (1 Mbps GFSK EM1 @ 38.4 MHz)
- 9.0 mA RX current (250 kbps O-QPSK DSSS, EM1 @ 38.4 MHz)
- 11.4 mA TX current @ 0 dBm output power (EM1 @ 38.4 MHz)
- 28.6 mA TX current @ 10 dBm output power (EM1 @ 38.4 MHz)
- 47 μA/MHz in Active Mode EM0 at 150 MHz
- 12-bit, 1 Msps Analog-to-Digital Converter (ADC)
- 2 × Analog Comparator (ACMP)
- Up to 28 General Purpose I/O pins with output state retention and asynchronous interrupts
- 8 Channel DMA Controller (LDMA)
- 16 Channel Peripheral Reflex System (PRS)
- 2 × 7-channel, 32-bit Timer/Counter with Compare, Capture, and Enhanced PWM capabilities
- 2 × 3-channel, 32-bit Timer/Counter with Compare, Capture, and Enhanced PWM capabilities
- 2 x 32-bit Real Time Counter (SYSRTC/BURTC)
- 24-bit Low-Energy Timer for waveform generation (LETIMER)
- 16-bit Pulse Counter with asynchronous operation (PCNT)
- 2 × Watchdog Timer (WDOG)
- 3 × Enhanced Universal Synchronous/Asynchronous Receiver/Transmitter (EUSART) supporting UART/SPI/DALI/IrDA/SmartCard
- 3 × I2C interface with SMBus support
- High-Frequency Crystal Oscillator (HFXO)
- High-Frequency RC Oscillator (HFRCO)
- Low-Frequency 32.768 kHz RC Oscillator (LFRCO)
- Low-Frequency 32.768 kHz Crystal Oscillator (LFXO)
- 2-channel LED Pre-driver (LEDDRV)
- 2 × Serial Pixel Interface (PIXELRZ)
- Die temperature sensor with TBD °C accuracy
- 2 (G)FSK with fully configurable shaping
- OQPSK DSSS
- (G)MSK
- Matter
- OpenThread
- Zigbee
- Bluetooth Low Energy
- Bluetooth mesh
- Proprietary 2.4 GHz
- Multiprotocol (DMP and CMP)
- 1.8 V to 3.6 V single power supply
- -40 to 125 °C
- QFN32 4 × 4 mm
- QFN40 5 × 5 × mm
- Hardware Cryptographic Acceleration for AES128/192/256, ChaCha20-Poly1305, SHA-1, SHA-2/256/384/512, ECDSA+ECDH(P-192, P-256, P-384), Ed25519 and Curve25519, J-PAKE, PBKDF2, SPAKE2+
- True Random Number Generator (TRNG)
- ARM® TrustZone®
- Secure Boot (Root of Trust Secure Loader)
- Secure Debug Unlock
- DPA Countermeasures
- Secure Key Management with PUF
- Anti-Tamper
- Secure Attestation
- DFA Detection
- Authenticated XiP (AXiP)
