Skyworks
SKY62101 - Ultra-Low Jitter Clock Generator
SKY62101
12-Output, Any-Frequency, Any-Output Clock Generator with Ultra-Low Jitter
Description

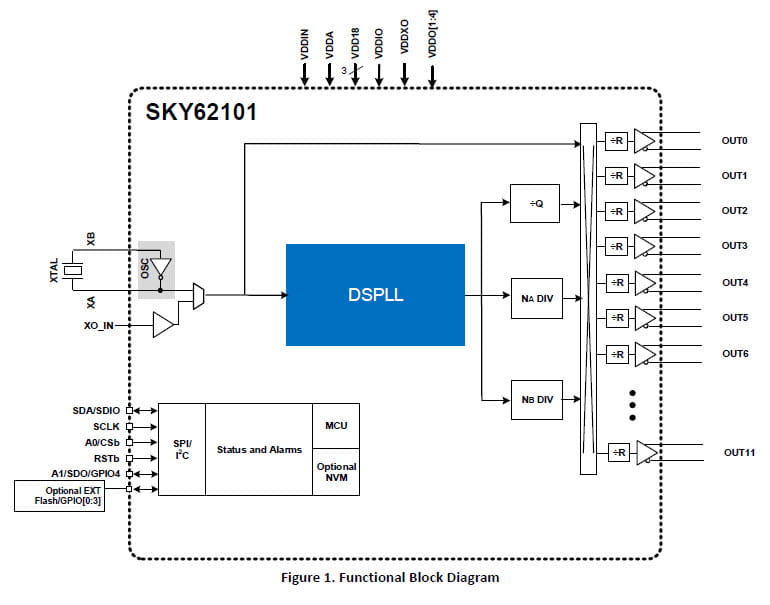

The SKY62101 clock generator combines Fifth-generation DSPLL® and MultiSynth™ technologies with an ultra-low jitter VCO to deliver ultra-low jitter (<55 fs) in PCIe Gen 1/2/3/4/5/6/7 compliant high-performance applications. The device is used in applications like 112G/224G SerDes, coherent optics, and data center equipment that demand the highest level of integration and jitter performance. All PLL components are integrated on-chip, eliminating the risk of noise coupling associated with discrete solutions. The SKY62101 supports free-run and synchronous operation by locking to an external crystal or oscillator. The SKY62101 is quickly and easily configured using Skyworks ClockBuilder® Pro (CBPro) software. ClockBuilder Pro assigns a custom part number for each unique configuration. Devices ordered with custom part numbers are factory-programmed, making it easy to get a custom clock configuration uniquely tailored for each application. Custom part numbers that are factory-programmed will power up with a known frequency configuration. The device may also be user-configured at power-up or internally configured in non-volatile memory (NVM) using the CBPro Field Programmer via the serial interface.
Application
- 56G/112G/224G PAM4 serializer/deserializer (SerDes) clocking
- OTN muxponders and transponders
- 100/200/400/600/800G networking line cards
- Synchronous Ethernet
- Data center switches
- 100G/200G/400G optical transceivers
- Medical imaging
- Test and measurement
Key Features
- Utilizes Fifth-generation DSPLL and MultiSynth technologies:
One DSPLL, two MultiSynth - Frequencies up to 3.2 GHz
- Ultra-low phase jitter:
<55 fs RMS typ (integer mode)
100 fs RMS typ (fractional mode) - PCIe Gen 1/2/3/4/5/6/7 compliant
- 12 outputs
- Output frequency range:
Differential: 8 kHz to 3.2 GHz
LVCMOS: 8 kHz to 250 MHz - Fixed or user-adjustable output formats
- Programmable delay at each output
- External flash or internal NVM options
- Simplified API interface
- Pin-compatible with SKY63104/05/06 jitter attenuators and SKY63001/69003/69102 IEEE 1588 PTP network synchronizers
- 56-QFN, 8 x 8 mm
- ClockBuilder Pro Configuration Software
