2024/03/22
Empowering Data Center with 48V Power Distribution
As the demand for cloud computing, AI applications, and high-power processors and accelerators grows, data centers are evolving to accommodate new high-power requirements. There is an industry need to increase the power density per rack to about 100kW compared to current data centers, which max out at only a 20kW power rating.
MPS develops a new 48V power distribution solution expected to transform data center designs from the traditional 12V architecture. Using a 48V distribution voltage is capable of a 16x reduction in power distribution losses. By leveraging a two-stage conversion approach, the new structure's overall efficiency would be about 95%, while maintaining levels of size, cost, and scalability.
Traditional 12V Power Structure
MPS 48V Power Structure
Read Article to Learn More Detail
Increasing the Power Density and Efficacy of Datacenters Using a Two-Stage Solution for 48V Power DistributionMPS 48V Data Center Solutions
Featured Product - Data Center

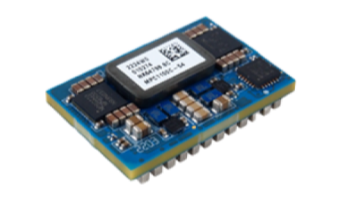

Digital DC/DC Power Module - MPS
The MP1100C-54-0002 is a high-efficiency, non-isolated LLC-DCX power card module with a fixed 10:1 transformer turns ratio. The device can deliver up to 300W of power.

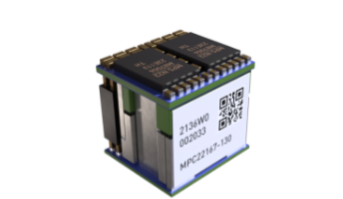

Two-Phase Intelli-Module - MPS
The MPC22167-130 is a two-phase, non-isolated, high-efficiency step-down power block. It has high efficiency and a small footprint, which makes the MPC22167-130 well-suited for server applications.
Smart DSP Retimers - Astera Labs
Aries PCIe/CXL Smart DSP Retimers compliant to all PCIe 6.x/5.0/4.0/3.0/2.0/1.0 rates and Retimer functional requirements. It is ideal for space-restricted applications like system boards and riser cards.
